这里简单演示一下Apache下基于加密的认证访问―-https加密方式访问。
1.DNS解析这里不再赘述了哈，相见本次演示的dns解析情况：
[[email protected] html]# nslookup www.abc.com
Server: 192.168.2.115
Address: 192.168.2.115#53
Name: www.abc.com
Address: 192.168.2.115
2.安装Apache SSL支持模块:# yum install -y mod_ssl （默认yum安装httpd是没有安装该模块的，安装后自动生产/etc/httpd/conf.d/ssl.conf文件）并生成证书。
[[email protected] certs]# pwd
/etc/pki/tls/certs
[[email protected] certs]# ls
ca-bundle.crt index.html
localhost.crt Makefile
ca-bundle.trust.crt localhost1.crt
make-dummy-cert
[[email protected] certs]# openssl req -utf8 -new -key
../private/localhost.key -x509 -days 3650 -out
abc_com.crt
You are about to be asked to enter information that will be
incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished
Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter ‘.’, the field will be left blank.
―C
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:510510
Locality Name (eg, city) [Default City]:GZ
Organization Name (eg, company) [Default Company
Ltd]:ABC.COM
Organizational Unit Name (eg, section) []:Mr.Zhang
Common Name (eg, your name or your server’s hostname)
[]:www.abc.com
Email Address []:[email protected]
[[email protected] certs]#
3.配置Apache，基本配置这里不多说了，下面是配置www.abc.com站点http访问的情况。
[[email protected] html]# tail -n 8 /etc/httpd/conf/httpd.conf
NameVirtualhost 192.168.2.115:80
<VirtualHost www.abc.com:80>
ServerAdmin [email protected]
DocumentRoot /var/www/html
ServerName www.abc.com
ErrorLog logs/dummy-host.example.com-error_log
CustomLog logs/dummy-host.example.com-access_log
common
</VirtualHost>
[[email protected] html]# tail /var/www/html/index.html
www.abc.com
[[email protected] html]#
4.配置Apache支持https访问www.abc.com站点，编辑 vim /etc/httpd/conf.d/ssl.conf 文件，制定www.abc.com站点https访问时的相关信息。添加下面配置。
<VirtualHost www.abc.com:443>
DocumentRoot “/var/www/html/www.kuteatest.net”
#//为了显示效果，这里的站点目录不一样，一般情况一个域名应该指向同一目录的。
ServerName www.abc.com:443
ErrorLog logs/ssl_error_log
TransferLog logs/ssl_access_log
LogLevel warn
SSLEngine on
SSLProtocol all -SSLv2
SSLCipherSuite
ALL:!ADH:!EXPORT:!SSLv2:RC4+RSA:+HIGH:+MEDIUM:+LOW
SSLCertificateFile
/etc/pki/tls/certs/abc_com.crt
SSLCertificateKeyFile /etc/pki/tls/private/localhost.key
<Files ~ “.(cgi|shtml|phtml|php3?)$”>
SSLOptions +StdEnvVars
</Files>
<Directory “/var/www/cgi-bin”>
SSLOptions +StdEnvVars
</Directory>
SetEnvIf User-Agent “.*MSIE.*”
nokeepalive ssl-unclean-shutdown
downgrade-1.0 force-response-1.0
CustomLog logs/ssl_request_log
“%t %h %{SSL_PROTOCOL}x
%{SSL_CIPHER}x ”%r” %b”
</VirtualHost>
4.重启Apache服务，测试访问。

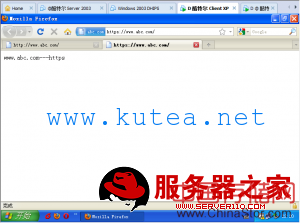

测试http访问的结果

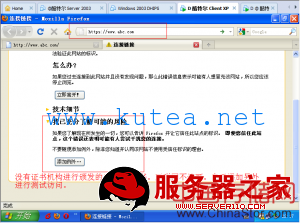

测试https访问的结果
查看证书信息和自建crt信息一致
https访问的最终结果
