oracle iSQL*PLUS配置设置图文说明

2014-06-07 07:26:37 来源:中存储网

iSQL*PLUS介绍

iSQL*PLUS是从ORACLE 9i开始提供的新功能,是SQL*PLUS的Web形式(ORACLE 11g已经不支持)。是基于三层结构设计的。其client、middle、server可以位于同一台机器上也可以位于不同的机器。iSqlPlus不需要单独安装,通过isqlplus,用户可以不需要安装任何ORACLE客户端,就能够通过浏览器方式的使用SQL*PLUS进行数据操作与数据库管理。普通的数据库用户可以直接通过isqlplus的网址http://ip:port/isqlplus登陆,进入该网址后会直接进入数据库用户登陆界面,使用数据库中的普通用户即可登陆;但如果是DBA用户登陆isqlpus,则需要首先配置iSQL*PLUS DBA的用户和口令,然后输入网址http://ip:port/isqlplus/dba,进入该网址后首先会弹出一个登陆框,要求先输入iSQL*Plus DBA的用户和密码,注意这里不是数据库用户,而是iSQL*PLUS应用服务器要求的用户和密码,然后才能出现iSQL*PLUS登陆界面,此时可以输入sys或者system用户,登陆数据库进行管理。要以DBA身份登陆isqlplus,必须先配置好oc4j用户。采用xml配置文件认证的方式。该配置文件位于$ORACLE_HOME/oc4j/j2ee/isqlplus/application-deployments/isqlplus/config但是该配置文件中的密码是加密过的,所以我们不能手动修改该文件,而是通过JAZN(Java AuthoriZatioN)来配置。JAZN是ORACLE提供的一个JASS(Java Authentication and Authorization Service)工具.

如何进入JAZN命令环境?

1.进入到目录$ORACLE_HOME/oc4j/j2ee/isqlplus/application-deployments/isqlplus/下,如下所示:

[oracle@DB-Server isqlplus]$ pwd

/database/product/dbhome_1/oc4j/j2ee/isqlplus/application-deployments/isqlplus

[oracle@DB-Server isqlplus]$ ls

application.log config isqlplus orion-application.xml

2.确保JAVA_HOME环境变量指向了正确的jdk(需要1.4以上)路径,可以使用ORACLE自带的jdk,位于$ORACLE_HOME/jdk

3.执行以下命令

[oracle@DB-Server isqlplus]$ $ORACLE_HOME/jdk/bin/java -Djava.security.properties=$ORACLE_HOME/oc4j/j2ee/home/config/jazn.security.props -jar $ORACLE_HOME/oc4j/j2ee/home/jazn.jar -user "iSQL*Plus DBA/admin" -password welcome -shell

其中realm=iSQL*Plus DBA,user=admin,这些可以从xml配置文件中看到,admin的默认密码是welcome,但是admin用户默认没有webDba权限,不能直接用于登陆isqlplus。通过JAZN,可以完成以下任务

1:新建用户kerry 密码设置为etl123!@#

JAZN:> adduser "iSQL*Plus DBA" kerry etl123!@#

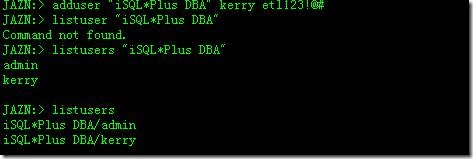

2:列出用户

查看这个组的用户

JAZN:> listusers "iSQL*Plus DBA"

admin

kerry

JAZN:> listusers

iSQL*Plus DBA/admin

iSQL*Plus DBA/kerry

clip_image002

3.授予用户kerry DBA的权限

JAZN:> grantrole webDba "iSQL*Plus DBA" kerry

4.撤销用户kerry DBA的权限

JAZN:> revokerole webDba "iSQL*Plus DBA" kerry

5.查看角色

JAZN:> listroles

iSQL*Plus DBA/webDba

iSQL*Plus DBA/admin

6.删除用户

JAZN:> remuser "iSQL*Plus DBA" kerry

7.修改用户密码

JAZN:> setpasswd "iSQL*Plus DBA" kerry etl123!@# 123456

8.退出JAZN命令环境

JAZN:> exit

上面我们创建了一个用户kerry,密码为etl123!@#,并且已经授予webDba权限。接下来重新启动isqlplus应用服务器isqlplusctl stop、isqlplusctl start

再进入网址http://ip:5560/isqlplus/dba,在弹出的对话框中输入kerry和etl123!@#,就可以进入到数据库登陆界面了,选择以sysdba或sysoper身份登陆了。



启动iSQL*PLUS



如果登录isqlplus页面打不开(报错): http://ip:5560/isqlplus/,首先检查isqlplus服务启动没有,然后检查一下端口

[oracle@DB-Server ~]$ isqlplusctl start

iSQL*Plus 10.2.0.1.0

Copyright (c) 2003, 2005, Oracle. All rights reserved.

getnameinfo failed

getnameinfo failed

Starting iSQL*Plus ...

iSQL*Plus started.

[oracle@DB-Server ~]$ netstat -an | grep 5560

tcp 0 0 0.0.0.0:5560 0.0.0.0:* LISTEN

停止iSQL*PLUS

[oracle@DB-Server ~]$ isqlplusctl stop

iSQL*Plus 10.2.0.1.0

Copyright (c) 2003, 2005, Oracle. All rights reserved.

getnameinfo failed

getnameinfo failed

iSQL*Plus instance on port 5560 is not running ...



日志信息



iSQL*PLUS使用的是Log4j,如下所示:

[oracle@DB-Server isqlplus]$ cd $ORACLE_HOME/oc4j/j2ee/oc4j_applications/applications/isqlplus/isqlplus/WEB-INF/classes

[oracle@DB-Server classes]$ ls

log4j.properties oracle

[oracle@DB-Server classes]$ more log4j.properties

# Log4j configuration file.

# Set root logger level and its only appender to A1.

#log4j.rootLogger=ALL, A1

#log4j.rootLogger=DEBUG, A1

#log4j.rootLogger=INFO, A1

#log4j.rootLogger=WARN, A1

#log4j.rootLogger=ERROR, A1

log4j.rootLogger=FATAL, A1

#log4j.rootLogger=OFF, A1

# A1 is set to be a ConsoleAppender.

log4j.appender.A1=org.apache.log4j.ConsoleAppender

# A1 uses PatternLayout.

log4j.appender.A1.layout=org.apache.log4j.PatternLayout

log4j.appender.A1.layout.ConversionPattern=%d{ISO8601} %-5.5p [%t] %-20.20c{2} - %m%n

# R is a rolling log file appender

log4j.appender.R=org.apache.log4j.RollingFileAppender

log4j.appender.R.File=isqlplus.log

log4j.appender.R.MaxFileSize=100KB

# Keep one backup file

log4j.appender.R.MaxBackupIndex=1

log4j.appender.R.layout=org.apache.log4j.PatternLayout

log4j.appender.R.layout.ConversionPattern=%d{ISO8601} %-5.5p [%t] %-20.20c{2} - %m%n

[oracle@DB-Server classes]$



在ORACLE 10g的$oracle_home/oc4j/j2ee/isqlplus/log目录下,你可以看到如下一些日志:

日志文件位于$ORACLE_HOME/oc4j/j2ee/isqlplus/application-deployments/isqlplus/application.log

[oracle@DB-Server WEB-INF]$ cd $ORACLE_HOME/oc4j/j2ee/isqlplus/application-deployments/isqlplus

[oracle@DB-Server isqlplus]$ ls

application.log config isqlplus orion-application.xml

[oracle@DB-Server isqlplus]$ more application.log

12/04/22 13:31:07 Started

12/04/22 13:31:09 isqlplus: jsp: init

12/04/22 13:31:09 isqlplus: config: init

12/04/22 13:31:09 isqlplus: uix: init

12/04/22 13:31:09 isqlplus: 9.0.4.1.0 Started

12/04/22 14:07:13 isqlplus: config: destroy

12/04/22 14:07:13 isqlplus: 9.0.4.1.0 Stopped

12/04/22 14:07:13 Stopped (JVM termination)

12/09/27 17:23:21 Started

12/09/27 17:23:29 isqlplus: jsp: init

12/09/27 17:23:30 isqlplus: config: init

12/09/27 17:23:31 isqlplus: uix: init

12/09/27 17:23:31 isqlplus: 9.0.4.1.0 Started

帮助的日志记录在:

$ORACLE_HOME/oc4j/j2ee/isqlplus/application-deployments/isqlplushelp/application.log

[oracle@DB-Server log]$ ls

global-application.log http-web-access.log rmi.log server.log

[oracle@DB-Server log]$ more rmi.log

12/04/22 13:31:07 9.0.4.1.0 Started

12/04/22 14:07:13 9.0.4.1.0 Stopped (JVM termination)

12/09/27 17:23:19 9.0.4.1.0 Started

12/11/08 17:43:38 9.0.4.1.0 Started

12/11/08 17:54:01 9.0.4.1.0 Stopped (Shutdown executed by jazn.com/admin from 127.0.0.1 (localhost), 2)

12/11/08 17:55:42 9.0.4.1.0 Started

[oracle@DB-Server log]$ more server.log

12/04/22 13:31:07 9.0.4.1.0 Started

12/04/22 13:31:07 9.0.4.1.0 Started

12/04/22 14:07:13 9.0.4.1.0 Stopped (JVM termination)

12/09/27 17:23:19 9.0.4.1.0 Started

12/09/27 17:23:21 9.0.4.1.0 Started

12/11/08 17:43:37 9.0.4.1.0 Started

12/11/08 17:43:38 Forced or abrupt (crash etc) server shutdown detected, starting recovery process...

12/11/08 17:43:38 Recovery completed, 0 connections committed and 0 rolled back...

12/11/08 17:43:38 9.0.4.1.0 Started

12/11/08 17:54:01 9.0.4.1.0 Stopped (Shutdown executed by jazn.com/admin from 127.0.0.1 (localhost), 2)

12/11/08 17:55:42 9.0.4.1.0 Started

12/11/08 17:55:42 9.0.4.1.0 Started

[oracle@DB-Server log]$ more http-web-access.log

172.20.61.185 - - [27/Sep/2012:17:24:39 +0800] "GET /isqlplus/ HTTP/1.1" 200 9154

172.20.61.185 - - [27/Sep/2012:17:24:39 +0800] "GET /isqlplus/cabo/styles/cache/blaf-A0-zh_CN-ie-windows.css HTTP/1

.1" 200 13850

172.20.61.185 - - [27/Sep/2012:17:24:39 +0800] "GET /isqlplus/cabo/images/cache/c-ghss.gif HTTP/1.1" 200 97

172.20.61.185 - - [27/Sep/2012:17:24:39 +0800] "GET /isqlplus/images/logo.gif HTTP/1.1" 200 7361

172.20.61.185 - - [27/Sep/2012:17:24:39 +0800] "GET /isqlplus/cabo/images/t.gif HTTP/1.1" 200 85

172.20.61.185 - - [27/Sep/2012:17:24:39 +0800] "GET /isqlplus/images/help.gif HTTP/1.1" 200 288

172.20.61.185 - - [27/Sep/2012:17:24:40 +0800] "GET /isqlplus/cabo/jsLibs/MarlinCoreA4.js HTTP/1.1" 200 26036

172.20.61.185 - - [27/Sep/2012:17:24:40 +0800] "GET /isqlplus/cabo/images/cache/c-ghsc.gif HTTP/1.1" 200 72

172.20.61.185 - - [27/Sep/2012:17:24:40 +0800] "GET /isqlplus/cabo/images/cache/c-ghe.gif HTTP/1.1" 200 85

172.20.61.185 - - [27/Sep/2012:17:24:40 +0800] "GET /isqlplus/cabo/images/cache/c-ghse.gif HTTP/1.1" 200 219

172.20.61.185 - - [27/Sep/2012:17:24:40 +0800] "GET /isqlplus/cabo/images/cache/c-ghc.gif HTTP/1.1" 200 133

172.20.61.185 - - [27/Sep/2012:17:24:40 +0800] "GET /isqlplus/cabo/images/cache/zhs/b-login.gif HTTP/1.1" 200 715

172.20.61.185 - - [27/Sep/2012:17:24:40 +0800] "GET /isqlplus/cabo/images/cache/c-skir.gif HTTP/1.1" 200 66

172.20.61.185 - - [27/Sep/2012:17:24:43 +0800] "GET /favicon.ico HTTP/1.1" 404 135

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "POST /isqlplus/login.uix HTTP/1.1" 200 11618

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/cabo/images/t.gif HTTP/1.1" 304 0

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/images/logo.gif HTTP/1.1" 304 0

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/cabo/jsLibs/MarlinCoreA4.js HTTP/1.1" 304 0

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/images/logout.gif HTTP/1.1" 200 360

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/cabo/styles/cache/blaf-A0-zh_CN-ie-windows.css HTTP/1

.1" 304 0

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/cabo/images/cache/c-ghss.gif HTTP/1.1" 304 0

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/cabo/images/cache/zhs/tb-56-0.gif HTTP/1.1" 200 971

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/images/help.gif HTTP/1.1" 304 0

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/cabo/images/cache/c-ghsc.gif HTTP/1.1" 304 0

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/cabo/images/cache/c-ghc.gif HTTP/1.1" 304 0

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/cabo/images/cache/c-ghse.gif HTTP/1.1" 304 0

172.20.61.185 - - [27/Sep/2012:17:24:52 +0800] "GET /isqlplus/cabo/i

[oracle@DB-Server log]$ more global-application.log

12/04/22 13:31:07 Started

12/04/22 13:31:08 defaultWebApp: jsp: init

12/04/22 13:31:08 defaultWebApp: 9.0.4.1.0 Started

12/04/22 14:07:13 defaultWebApp: 9.0.4.1.0 Stopped

12/04/22 14:07:13 Stopped (JVM termination)

12/09/27 17:23:20 Started

12/09/27 17:23:27 defaultWebApp: jsp: init

12/09/27 17:23:27 defaultWebApp: 9.0.4.1.0 Started

12/11/08 17:43:38 Started

12/11/08 17:43:39 defaultWebApp: jsp: init

12/11/08 17:43:39 defaultWebApp: 9.0.4.1.0 Started

12/11/08 17:54:01 defaultWebApp: 9.0.4.1.0 Stopped

12/11/08 17:54:01 Stopped (Shutdown executed by jazn.com/admin from 127.0.0.1 (localhost), 2)

12/11/08 17:55:42 Started

12/11/08 17:55:43 defaultWebApp: jsp: init

12/11/08 17:55:43 defaultWebApp: 9.0.4.1.0 Started

配置问题

1:变更session的有效期:

在$ORACLE_HOME/oc4j/j2ee/oc4j_applications/applications/isqlplus/isqlplus/WEB-INF下的web.xml文件中。

设置:

<session-config>

<session-timeout>15</session-timeout>

</session-config>

为分钟状态。

2:限制登录

[oracle@DB-Server WEB-INF]$ vi web.xml

<?xml version = '1.0' encoding = 'windows-1252'?>

<!DOCTYPE web-app PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN" "http://java.sun.com/dtd/web-app_2_3.dtd">

<web-app>

<display-name>iSQL*Plus</display-name>

<description>iSQL*Plus Configuration File</description>

<servlet>

<servlet-name>config</servlet-name>

<servlet-class>oracle.sqlplus.iplus.core.Config</servlet-class>

<init-param>

<param-name>iSQLPlusAllowUserMarkup</param-name>

<param-value>none</param-value>

<description>Valid values are: none | all</description>

</init-param>

<init-param>

<param-name>iSQLPlusConnectIdList</param-name>

<param-value>wgods;bics;orcl</param-value>

<description>The database(s) to which iSQL*Plus users are restricted. The list should contain the Oracle SIDs or SERVICE NAMEs

, separated by a semicolon (;). If there are no entries, database access is not restricted through iSQL*Plus.</description>

</init-param>

其中的<param-value>代表$ORACLE_HOME/network/admin/tnsnames.ora中的名字,如果设置服务名后,只能从下拉框选择。

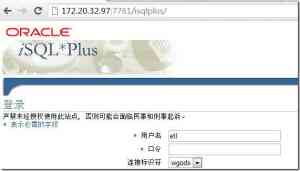

如果<param-value>没有设置值,那么可以手动输入SID。如下所示:

clip_image004

3:修改iSQL*PLUS端口

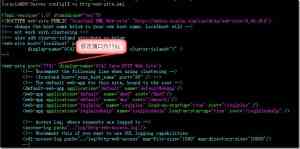

转到$ORACLE_HOME/oc4j/j2ee/isqlplus/config下,编辑http-web-site.xml文件

clip_image006

clip_image008

问题锦集

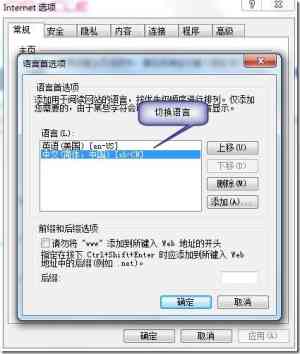

1:中文环境,按钮字体出现乱码。可以选址语言。切换到英文环境即可看到按钮的字体

clip_image010

clip_image012

clip_image014

解决办法

[oracle@DB-Server zhs]$ cd $ORACLE_HOME/jdk/jre/lib

[oracle@DB-Server lib]$ ls

audio font.properties.ja.Redhat6.2 font.properties.zh_CN.Redhat2.1 images

charsets.jar font.properties.ja.Redhat7.2 font.properties.zh_CN.Sun jce.jar

cmm font.properties.ja.Redhat7.3 font.properties.zh_CN_UTF8.Sun jsse.jar

content-types.properties font.properties.ja.Redhat8.0 font.properties.zh_HK.Sun jvm.hprof.txt

ext font.properties.ja.Turbo font.properties.zh_HK_UTF8.Sun jvm.jcov.txt

flavormap.properties font.properties.ja.Turbo6.0 font.properties.zh_HK_UTF8.Sun2003 locale

font.properties font.properties.ko_KR.Sun font.properties.zh.Turbo logging.properties

font.properties_back font.properties.ko_KR_UTF8.Sun font.properties.zh_TW.Redhat plugin.jar

font.properties.ja font.properties.ko_KR_UTF8.Sun2003 font.properties.zh_TW.Redhat2.1 psfontj2d.properties

font.properties.ja_JP.Sun font.properties.ko.Redhat font.properties.zh_TW.Sun psfont.properties.ja

font.properties.ja_JP.Sun2003 font.properties.ko.Redhat2.1 font.properties.zh_TW_UTF8.Sun rt.jar

font.properties.ja_JP_UTF8.Sun font.properties.Redhat6.1 font.properties.zh_TW_UTF8.Sun2003 security

font.properties.ja_JP_UTF8.Sun2003 font.properties.Redhat8.0 fonts sunrsasign.jar

font.properties.ja.Redhat3 font.properties.SuSE8.0 i386 zi

font.properties.ja.Redhat6.1 font.properties.zh_CN.Redhat im

[oracle@DB-Server lib]$

备份font.properties

[oracle@DB-Server lib]$ cp font.properties font.properties_back

[oracle@DB-Server lib]$ cp font.properties.zh_CN.Redhat font.properties

查看font.properties文件,确认文件中指定的字体文件zysong.ttf在系统内存在。若不存在需要修改此文件或安装这个字体

[oracle@DB-Server lib]$ tail -10 font.properties

fontset.dialoginput.plain=

-b&h-luxi mono-medium-r-normal--*-%d-*-*-m-*-iso8859-1,

-isas-song ti-medium-r-normal--*-%d-*-*-c-*-gb2312.1980-0

fontset.default=

-b&h-luxi sans-medium-r-normal--*-%d-*-*-p-*-iso8859-1,

-isas-song ti-medium-r-normal--*-%d-*-*-c-*-gb2312.1980-0

filename.-misc-zysong18030-medium-r-normal--*-%d-*-*-c-*-iso10646-1=/usr/share/fonts/zh_CN/TrueType/zysong.ttf

[oracle@DB-Server lib]$

转到/usr/share/fonts目录下,发现没有zh_CN目录,新建目录zh_CN/TrueType,去网上下载字体zysong.ttf放在/usr/share/fonts/zh_CN/TrueType目录下。

然后

[oracle@DB-Server fonts]$ cd $ORACLE_HOME/oc4j/j2ee/oc4j_applications/applications/isqlplus/isqlplus/cabo/images/cache/zhs/

[oracle@DB-Server zhs]$ ls

b-0dac.gif b-54.gif b-cancel.gif b-execute.gif b-login.gif b-save.gif tb-56-0.gif

b-0dac.imx b-54.imx b-cancel.imx b-execute.imx b-login.imx b-save.imx tb-56-0.imx

[oracle@DB-Server zhs]$ rm *

[oracle@DB-Server zhs]$ isqlplusctl stop

iSQL*Plus 10.2.0.1.0

Copyright (c) 2003, 2005, Oracle. All rights reserved.

getnameinfo failed

getnameinfo failed

Stopping iSQL*Plus ...

iSQL*Plus stopped.

[oracle@DB-Server zhs]$ isqlplusctl start

iSQL*Plus 10.2.0.1.0

Copyright (c) 2003, 2005, Oracle. All rights reserved.

getnameinfo failed

getnameinfo failed

Starting iSQL*Plus ...

iSQL*Plus started.

[oracle@DB-Server zhs]$

clip_image016

2:以DBA账号登录时,如果不指定连接标识符,则会报如下错误:ORA-12154:TNS:could not resolve the connect identifier specified.



clip_image018

clip_image020
