Nginx服务器配置负载均衡详解

2014-04-15 12:43:01 来源:kejihao
make install

安装完成之后 安装 nginx

./configure --with-http_stub_status_module –prefix=/usr/local/nginx

make

make install

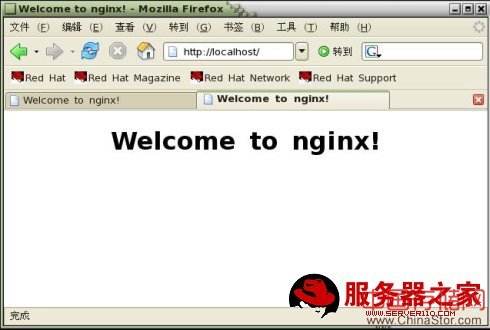

就这样nginx 安装完成 启动nginx 命令如下 ./nginx & 如果通过http://localhost 能够访问的话 表示安装成功 /如图:

nginx <wbr>负载均衡配置

安装成功后 /usr/local/nginx 目录下有四个子目录分别是:conf、html、logs、sbin 。其中 Nginx 的配置文件存放于 conf/nginx.conf,Nginx 只有一个程序文件位于 sbin 目录下的 nginx 文件。

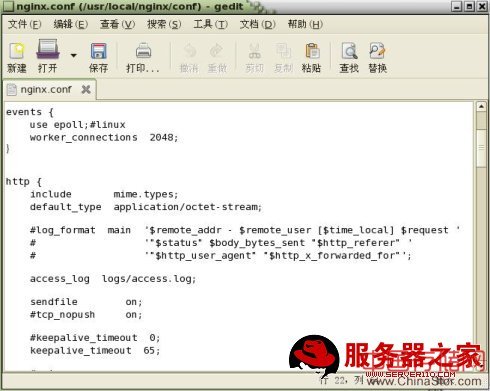

打开nginx.conf配置文件 修改后内容如下: #user nobody;

worker_processes 1;

#error_log logs/error.log;

#error_log logs/error.log notice;

#error_log logs/error.log info;

#pid logs/nginx.pid;

events {

use epoll;#linux

worker_connections 2048;

}

http {

include mime.types;

default_type application/octet-stream;

#log_format main '$remote_addr - $remote_user [$time_local] $request '

# '"$status" $body_bytes_sent "$http_referer" '

# '"$http_user_agent" "$http_x_forwarded_for"';

access_log logs/access.log;

sendfile on;

#tcp_nopush on;

#keepalive_timeout 0;

keepalive_timeout 65;

#gzip on;

upstream mao{

server 192.168.0.208:8080 weight=2;

server 192.168.0.235 weight=3;

}

server {

listen 80;

server_name www.today.com;

charset utf-8;

#access_log logs/host.access.log main;

location ~* ^.+.(jpg|jpeg|gif|png|ico|css|zip|tgz|gz|rar|bz2|doc|xls|exe|pdf|ppt|txt|tar|mid|midi|wav|bmp|rtf|js|mov) {

access_log off; # po co mi logi obrazków :)

expires 30d;

}

location ~ ^/(WEB-INF)/ {

deny all;

}

location /NginxStatus/ {

stub_status on; #Nginx 状态监控配置

access_log off;

}

location /they{

proxy_pass http://mao;# 反向代理

#include proxy.conf;

}

# location / {

#proxy_pass http://192.168.0.208:8080;

#proxy_set_header X-Real-IP $remote_addr;

#}

#error_page 404 /404.html;

# redirect server error pages to the static page /50x.html

#

error_page 500 502 503 504 /50x.html;

location = /50x.html {

root html;

}

# proxy the PHP scripts to Apache listening on 127.0.0.1:80

#

#location ~ .php$ {

# proxy_pass http://127.0.0.1;

#}

# pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000

#

#location ~ .php$ {

# root html;

# fastcgi_pass 127.0.0.1:9000;

# fastcgi_index index.php;

# fastcgi_param SCRIPT_FILENAME /scripts$fastcgi_script_name;

# include fastcgi_params;

#}

# deny access to .htaccess files, if Apache's document root

# concurs with nginx's one

#

#location ~ /.ht {

# deny all;

#}

}

# another virtual host using mix of IP-, name-, and port-based configuration

#

#server {

# listen 8000;

# listen somename:8080;

# server_name somename alias another.alias;

# location / {

# root html;

# index index.html index.htm;

# }

#}

# HTTPS server

#

#server {

# listen 443;

# server_name localhost;

# ssl on;

# ssl_certificate cert.pem;

# ssl_certificate_key cert.key;

# ssl_session_timeout 5m;

# ssl_protocols SSLv2 SSLv3 TLSv1;

# ssl_ciphers ALL:!ADH:!EXPORT56:RC4+RSA:+HIGH:+MEDIUM:+LOW:+SSLv2:+EXP;

# ssl_prefer_server_ciphers on;

# location / {

# root html;

# index index.html index.htm;

# }

#}

}

nginx <wbr>负载均衡配置

动态页面请求处理:

Nginx 本身并不支持现在流行的 JSP、ASP、PHP、PERL 等动态页面,但是它可以通过反向代理将请求发送到后端的服务器,例如 Tomcat、Apache、IIS 等来完成动态页面的请求处理。前面的配置示例中,我们首先定义了由 Nginx 直接处理的一些静态文件请求后,其他所有的请求通过 proxy_pass 指令传送给后端的服务器(在上述例子中是 Tomcat)。最简单的 proxy_pass 用法如下:

location / {

proxy_pass http://localhost:8080;

proxy_set_header X-Real-IP $remote_addr;

}

在本例中我们配置的是2台机器的负载均衡 所以我们的配置是 :

location /they{

proxy_pass http://mao;# 反向代理

#include proxy.conf;

}

其中 mao 是我们用upstream 来定义的 例如:

upstream mao{

server 192.168.0.208:8080 weight=2;

server 192.168.0.235 weight=3;

}

在 Nginx 的集群配置中,Nginx 使用最简单的平均分配规则给集群中的每个节点分配请求。一旦某个节点失效时,或者重新起效时,Nginx 都会非常及时的处理状态的变化,以保证不会影响到用户的访问。
